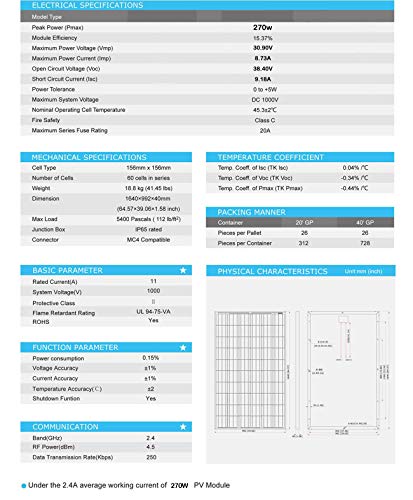

Technical data sheet Typical type: 270W Max-Power (Pmax) w: 270W Max-Power Voltage (Vmp): 30.90 Max-Power Current (Imp): 8.73 Open Circuit Voltage (Voc): 38.40 Short Circuit Current (Isc): 9.18 Max-System Voltage DC1000V (TUV) / 600V (UL) Efficiency Dimensions: 1640 x 992 x 35 kgs Pmax
High efficiency module conversion efficiency up to 17.52% using high efficiency solar cells and advanced manufacturing technology. Low degradation and excellent performance under high temperatures and low light conditions. The robust aluminium frame ensures the modules support wind loads of up to 2400 Pa and snow charges up to 5400 Pa. High reliability against extreme environmental conditions (passing salt fog, ammonia and hail tests).
Certifications IEC61215, IEC61730, IEC62716, IEC61701, CE, CQC, CGC, ETL (US), JET (Japan), J-PEC (Japan), Kemco (South Korea), KS (South Korea), MCS (United Kingdom), CEC (Australia), FSEC (FL-USA), CSI Eligible (CA-USA), Israel Electric (1400), Intake 1: Environmental Management

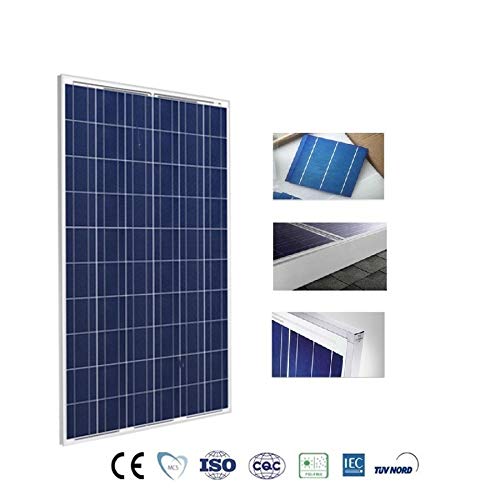

The 270W polycrystalline solar panel with 24 volts of power for use in solar installations at 12 volts, solar inputs at 24 volts and solar installations at 48 volts. Thanks to 5 nozzles each cell to produce maximum solar efficiency. Manufactured using high performance polycrystalline silicon cells
It has extra strong glass, wiring and MC4 connectors for easy installation. Generates electricity from solar radiation and uses it for any type of electrical consumption you need
