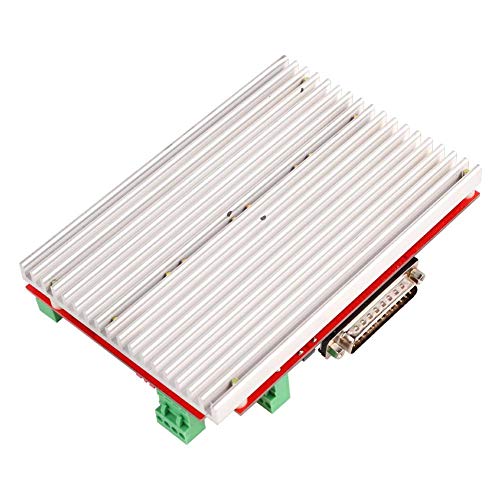

New bipolar constant current chopping technology,The latest v4 board optimizes the circuit and completely follows the sanyo official layout specification to minimize motor noise and improve product stability.Exclusively designed for the diagonal mounting holes of the heat sink for easy installation on the cabinet.
With fan interface,With limit interface,2-way relay output,With high speed optocoupler and dc/dc power isolation,With spindle 0-10v debugging, software s command directly controls the output voltage, which is convenient for direct connection with the inverter.
Input pulse frequency up to 200khz,Support 8 subdivision options: Up to 128 subdivisions,With the spindle start and stop switch, the ground open signal is convenient for direct connection to the inverter.

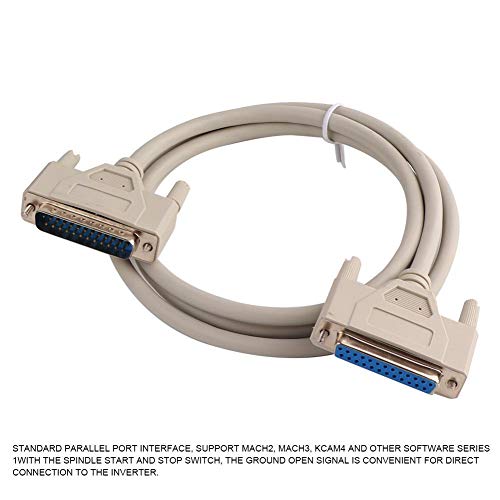

8-speed adjustable function with current 0.6, 1.2, 1.8, 2.4, 3.0, 3.6, 4.2, 4.8 (peak) Standard parallel port interface, support mach2, mach3, kcam4 and other software series
With automatic semi-flow function,Easy to configure, simple and flexible packing. The interface board and the driver board can share 12~36vdc power supply or 5v independent power supply.
